NESA Software Engineering - HSC Revision Hub

A Strategic Guide to the 2022 NESA Syllabus

This interactive hub is designed for a final, high-speed review of the NESA Software Engineering syllabus. The current curriculum marks a significant shift from theory to practical, project-based learning, reflecting modern industry demands in areas like mechatronics, web development, and secure architecture. This guide focuses on applied understanding to prepare you for the new computer-based HSC examination format.

Key Paradigm Shift

The course moves away from abstract concepts to hands-on projects, mirroring real-world development practices. Expect to be tested on problem-solving, not just rote memorization.

New HSC Exam Format

A 2.5-hour computer-based exam worth 80 marks. It will include stimulus material (code, diagrams) and assumes proficiency in Python. The format is ~20 marks of objective-response and ~60 marks of short-answer items.

NESA Learning Outcomes Tracker

Track your progress across all 18 official NESA learning outcomes. Check off outcomes as you master them and visualize your overall progress.

Overall Progress

0 of 18 outcomes mastered

Year 11 Progress

0 of 9 outcomes mastered

Year 12 Progress

0 of 9 outcomes mastered

Year 11 Foundation Outcomes

Year 12 Advanced Outcomes

High-Frequency Terminology Glossary

Use this searchable glossary as a rapid-fire warm-up to verify your foundational knowledge. Enter a term to filter the list.

Interactive Self-Assessment Challenge

Challenge your understanding with ~100 focused questions. Test your knowledge, check answers, and track your confidence across different topics.

Question 1 of 100 All Topics

How confident are you with your answer?

Year 11: Foundational Knowledge

Year 11 establishes the core skills in programming, data management, and design paradigms. Click on each module to reveal key revision questions.

Year 12: Advanced Applications

Year 12 extends your skills into specialized, industry-relevant domains and culminates in a major project. Click to explore the modules.

HSC Exam-Style Stimulus Questions

Test your application and analysis skills with these practical, exam-style questions. Click the button to reveal the answer and explanation.

3.1 Code Comprehension (Python)

Consider the following Python function:

def process_data(data_list):
    if len(data_list) == 0:
        return 0

    total = 0
    count = 0
    for item in data_list:
        if item > 0:
            total = total + item
            count = count + 1

    if count > 0:
        return total / count
    else:
        return 0

1. Trace the execution with `data_list = [10, -5, 20, 0, 15]`. What is the return value?

Answer: 15.0

Explanation: The loop processes positive numbers only. `total` becomes `10 + 20 + 15 = 45`. `count` becomes 3. The function returns `45 / 3 = 15.0`.

2. In one sentence, what is the purpose of this algorithm?

Answer: The algorithm calculates the average of all the positive numbers in a given list.

Diagrams & Visual Models

Master the essential diagrams required for HSC Software Engineering. These interactive visual tools help you understand system design, data flow, and software architecture concepts that are crucial for the exam.

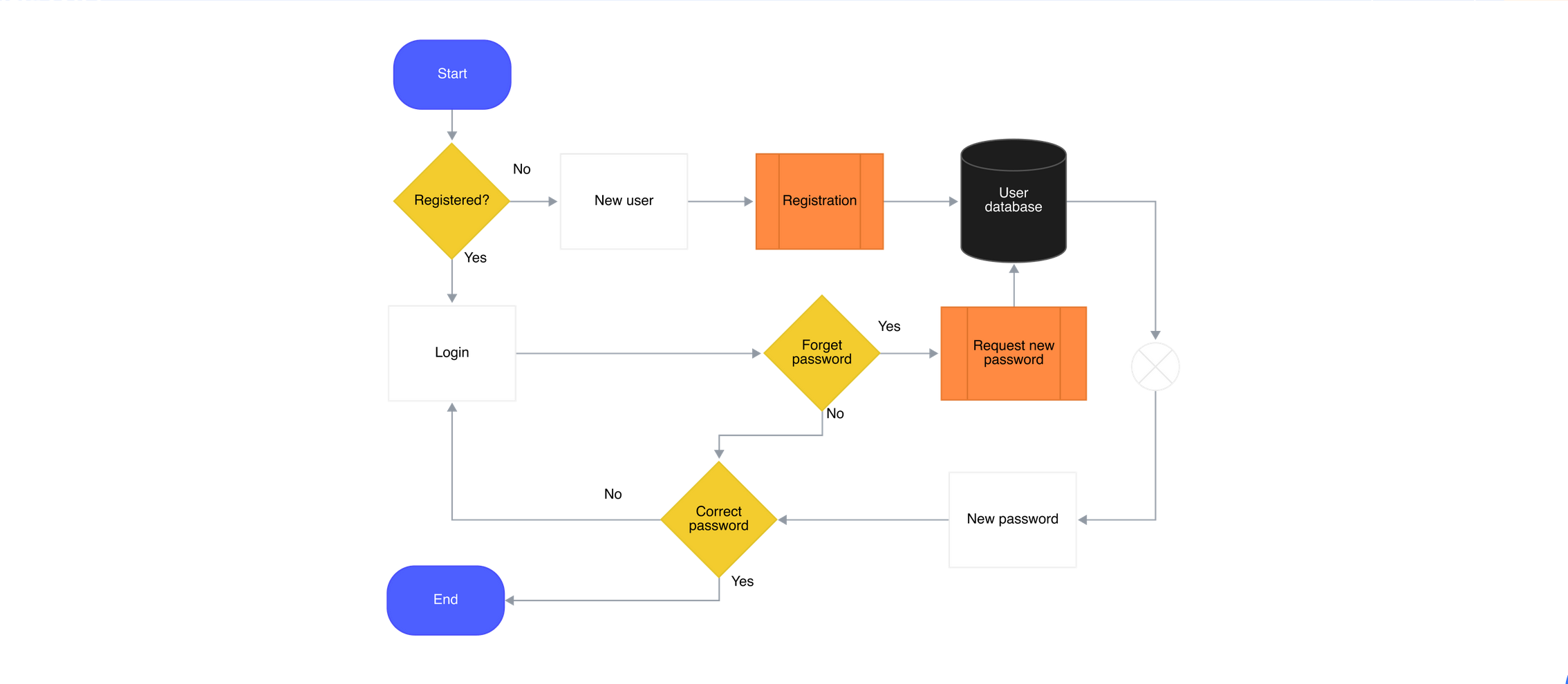

Flowchart - Login Process

A simple flowchart showing the basic login process with decision points and different flow paths. Notice the use of different shapes for start/end (ovals), processes (rectangles), and decisions (diamonds).

Login Process Flowchart showing decision flow from start through username/password validation to success or error outcomes

HSC Tip: In exams, trace through flowcharts step by step with given inputs. Pay attention to decision points and different flow paths.

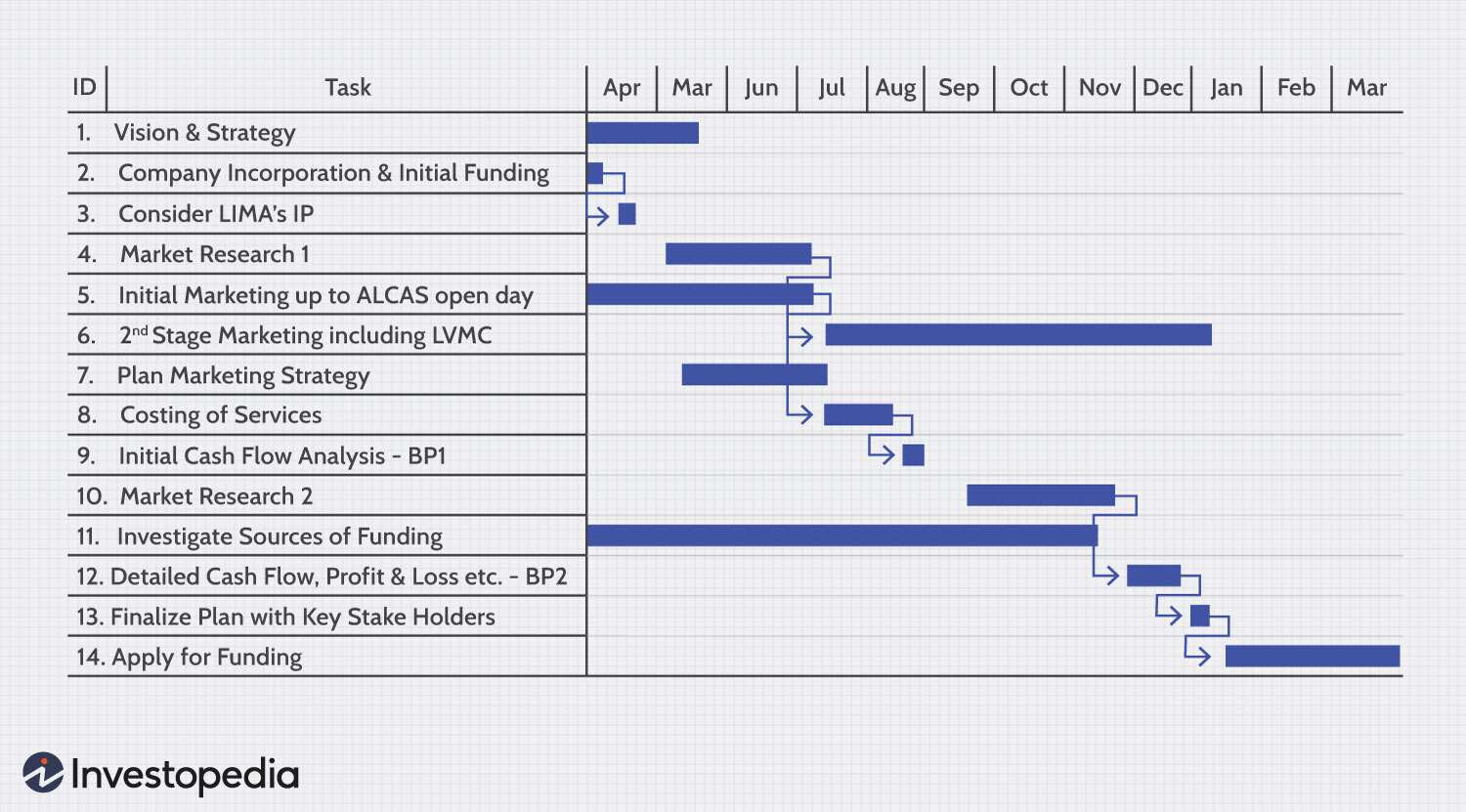

Gantt Chart - Simple Project Timeline

Gantt charts show project schedules and task dependencies. This simple example shows how tasks can run sequentially or in parallel with clear timelines.

Gantt Chart showing project timeline with tasks, dependencies, and scheduling across multiple weeks

Project Management Tip: Gantt charts help identify task dependencies and project timeline. Notice how testing can only start after development is partially complete.

Structure Chart - E-learning System

Structure charts show the breakdown of a system into its modules, illustrating the hierarchy and relationships between them. They are key to understanding top-down design.

Structure Chart showing hierarchical breakdown of system modules and their relationships in top-down design

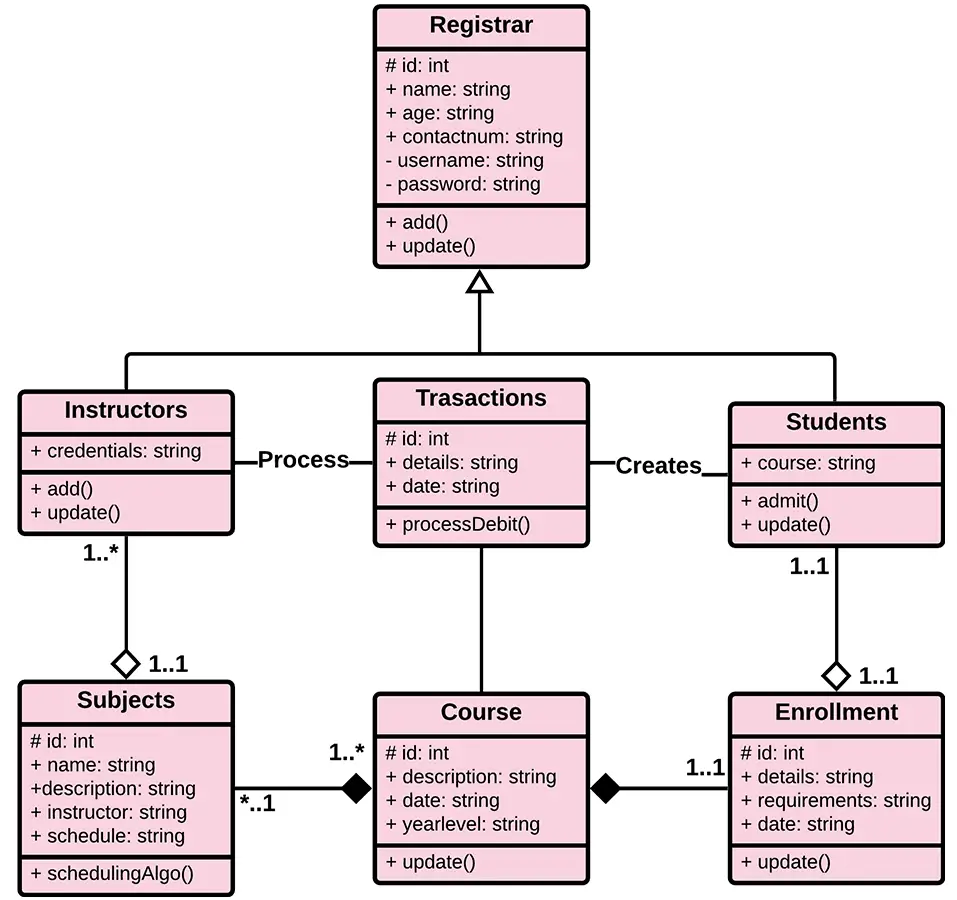

UML Class Diagram - School Management System

This comprehensive class diagram demonstrates inheritance, composition, and association relationships in an object-oriented system. Pay attention to the different types of relationships and multiplicity indicators.

UML Class Diagram showing object-oriented design with classes, attributes, methods, and relationships including inheritance and associations

OOP Concepts: Notice the inheritance (Person → Student/Teacher), composition (Department contains Teachers), and many-to-many relationships (Student ↔ Course). The abstract Person class cannot be instantiated directly.

Use Case Diagram - Library System

Use case diagrams show interactions between users (actors) and the system. They help identify system requirements and define functionality from a user's perspective.

Use Case Diagram showing actors, system boundary, and use cases with relationships between users and system functionality

Systems Analysis: Use cases help identify functional requirements. Notice how different actors have different permissions and access levels to system features.

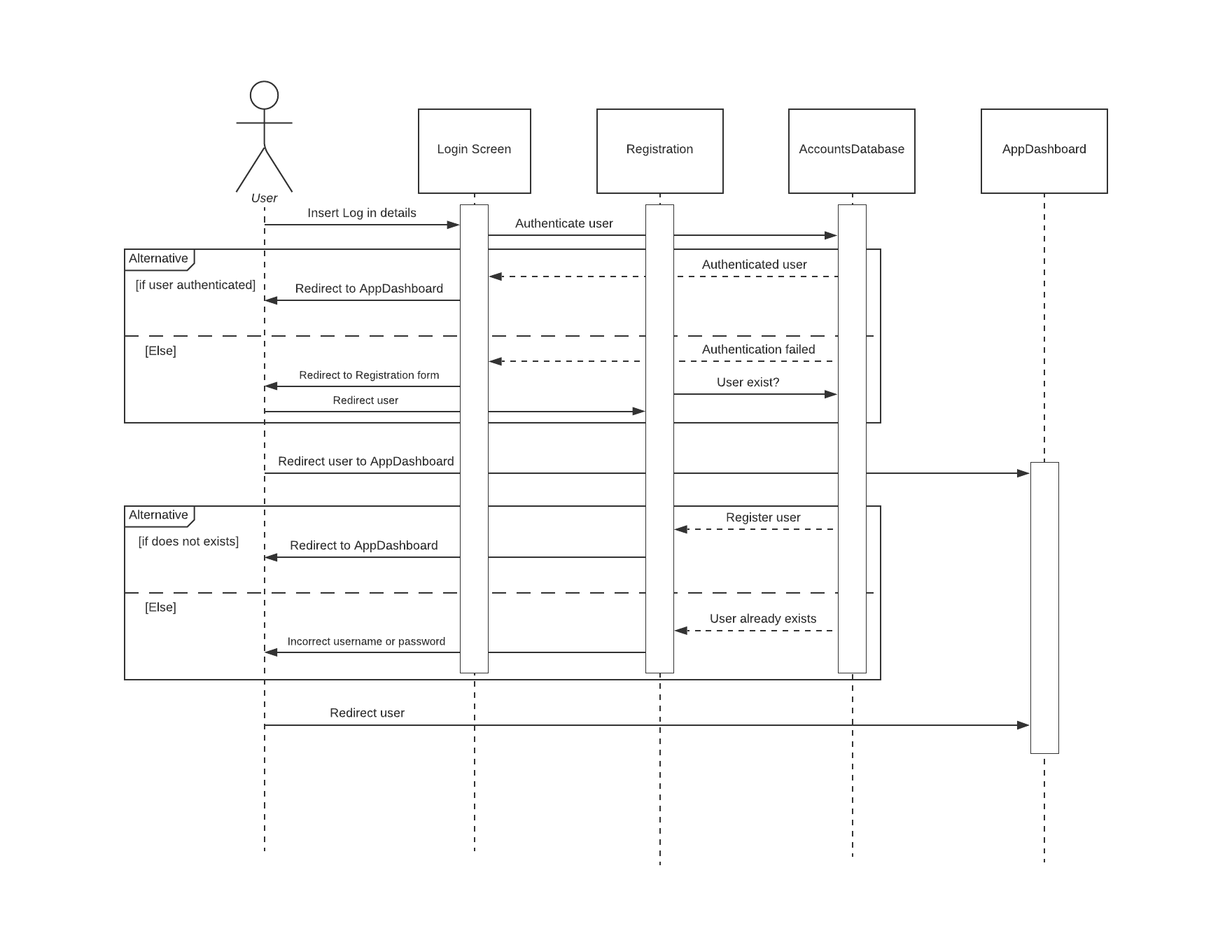

Sequence Diagram - User Login

Sequence diagrams show how objects interact over time. They illustrate the flow of messages between objects and are crucial for understanding system behavior.

Sequence Diagram showing time-ordered interactions between objects with lifelines and message exchanges

Interaction Design: Sequence diagrams help identify the order of operations. Solid arrows show synchronous messages, dashed arrows show return messages.

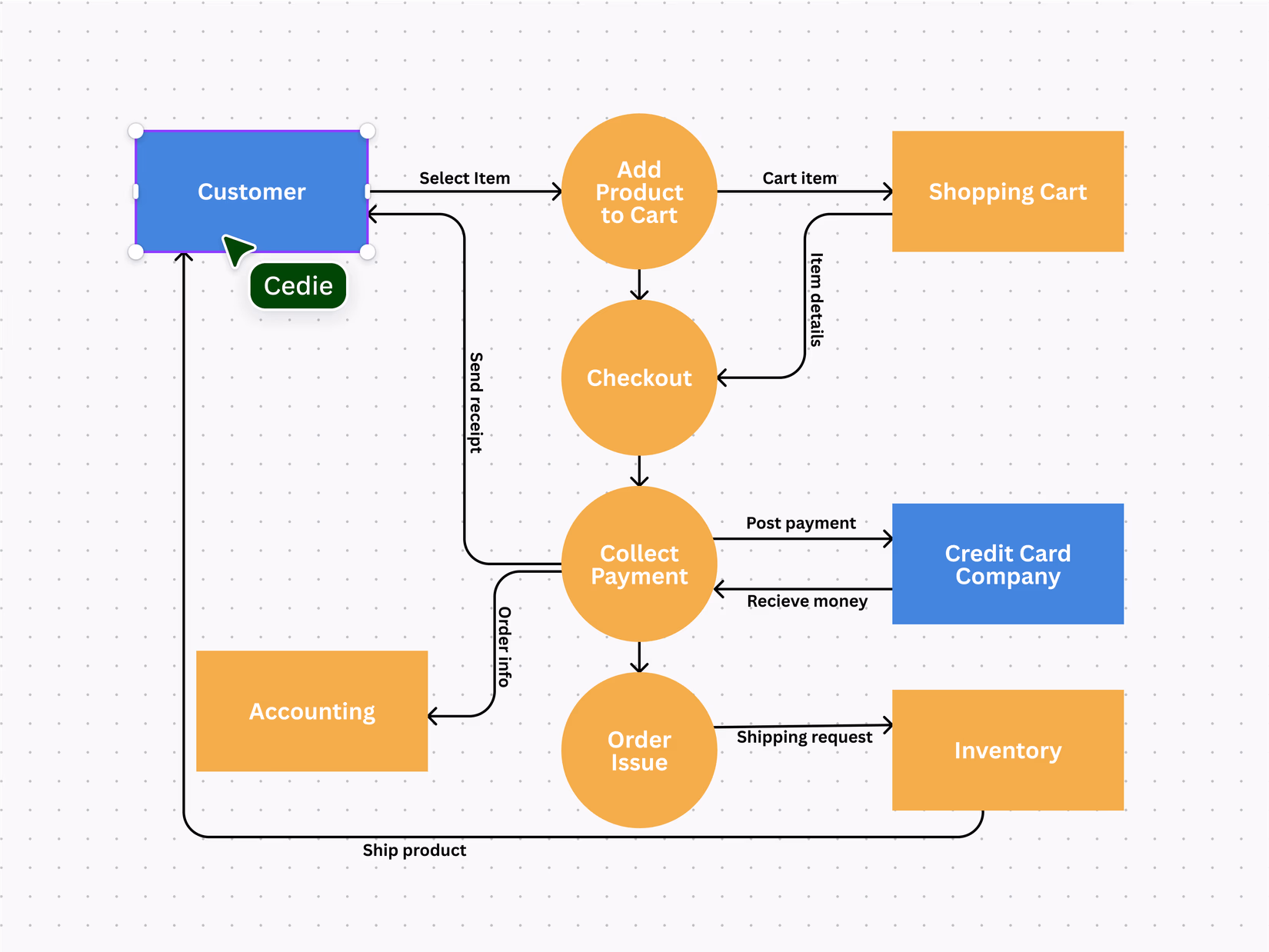

Data Flow Diagram - Order System

Data Flow Diagrams show how data moves through a system. This Level 0 (Context) diagram provides a high-level view of the system and its external entities.

Data Flow Diagram showing data movement through system processes, external entities, and data stores

Systems Analysis: DFDs help identify data requirements and system boundaries. External entities are shown outside the system boundary, and data flows show what information is exchanged.

Activity Diagram - Order Processing

Activity diagrams model workflows and business processes. They show activities, decision points, and parallel processes. This example demonstrates a simple order processing workflow.

Activity Diagram showing workflow process with decision points, parallel activities, and control flow from start to end

Process Modeling: Activity diagrams show workflows with decision points and parallel paths. Notice how different conditions lead to different activities before merging back together.

Final Exam Strategy

Approach the HSC exam with confidence by focusing on these key strategies.

Time Management

Allocate slightly less than two minutes per mark. Don't get stuck; move on and come back to difficult questions later.

Focus on the Stimulus

Your primary skill is analysis, not just recall. The answers are often derived directly from the provided code or diagrams.

Python Proficiency

Be comfortable with fundamental Python syntax for variables, control structures, functions, and basic data structures (lists, dictionaries).

High-Yield Topics

Ensure you have a clear mental model of the SDLC, OOP principles, secure design concepts, and design trade-offs.
